Magical exterior colour-change: The BMW iX Flow featuring E Ink.

Groundbreaking invention:

Last November, TIME revealed its annual list of the Best Inventions, which features 200 extraordinary groundbreaking inventions “that are changing how we live, work, play, and think about what’s possible”. One of these inventions was the iX Flow, the “color changing car”.

iX Flow

Current BMW models are typically characterised by individuality and the emotionalisation of their interior space. The My Modes feature allows the driver to tailor the atmosphere in the interior entirely to their personal mood and the driving experience they want. With the BMW iX Flow featuring E Ink, the BMW Group offers a completely new way of changing the vehicle's appearance in line with the driver's aesthetic preferences, the environmental conditions or even functional requirements. The technology thus offers unprecedented potential for personalisation in the area of exterior design, as the surface of the BMW iX Flow featuring E Ink can vary its shade at the driver’s prompting.

“Digital experiences won't just be limited to displays in the future. There will be more and more melding of the real and virtual. With the BMW iX Flow, we are bringing the car body to life,” says Frank Weber, Member of the Board of Management of BMW AG, Development.

Freedom to express the different facets of one’s personality at the touch of a button

The colour chosen for a car is an expression of the driver’s personality. The choice of exterior paints available for current BMW models covers a wide colour spectrum. In this way, the longing for a wildly expressive, extravagant, or sporty appearance on the outside can be taken into account, as well as the desire for an understated, subtle or elegant appearance. New variants are added each year that reflect the characteristics of the model in question and that allow the brand to keep setting trends in the area of exterior design.

New technologies will provide a whole new level of decision-making freedom in the future. “This gives the driver the freedom to express different facets of their personality or even their enjoyment of change outwardly, and to redefine this each time they sit in their car,” says Stella Clarke, Head of Project for the BMW iX Flow featuring E Ink. “Similar to fashion or the status ads on social media channels, the vehicle then becomes an expression of different moods and circumstances in daily life.”

Millions of paint capsules in a custom wrap.

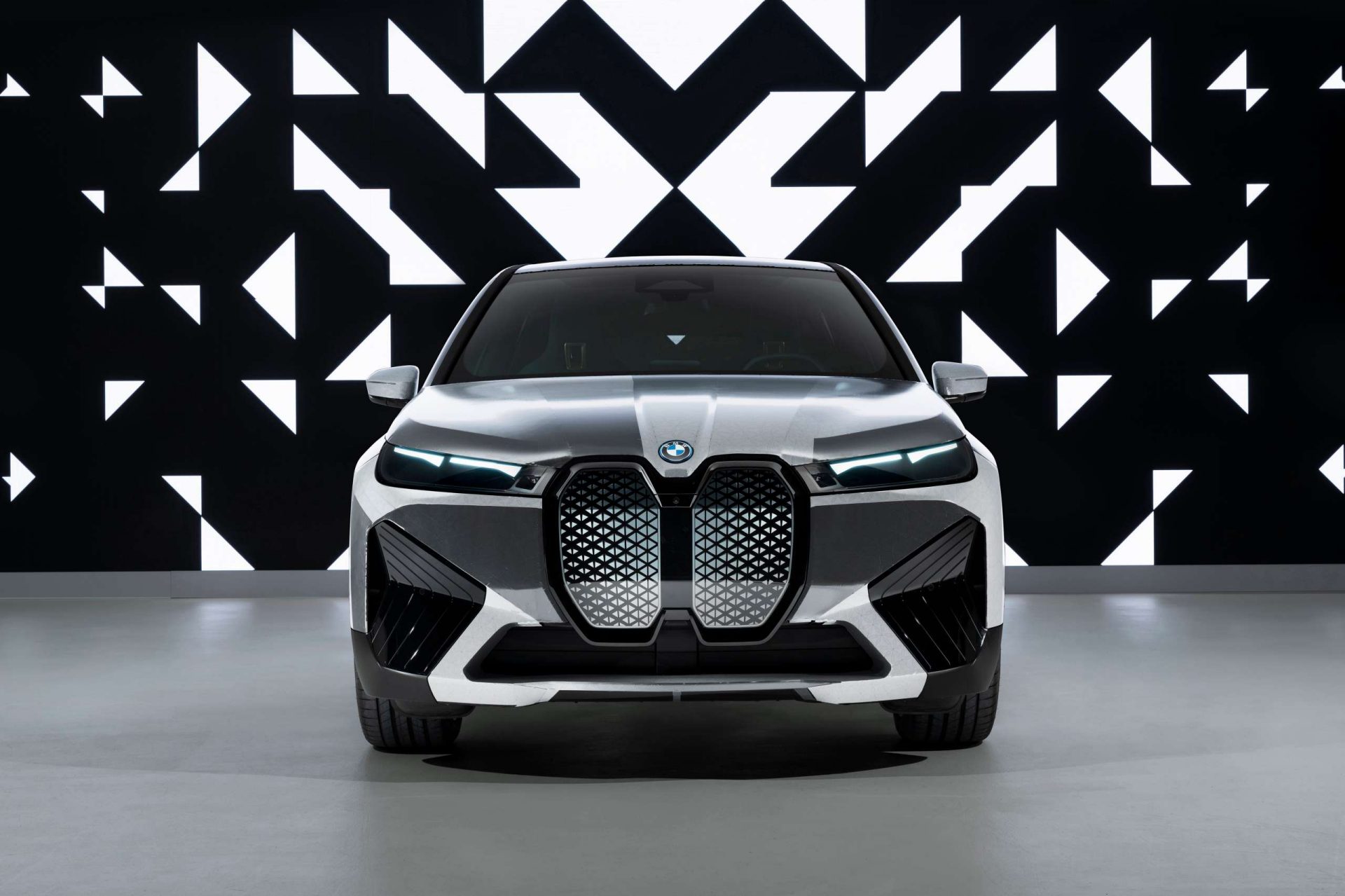

The fluid colour changes are made possible by a specially developed body wrap that is tailored precisely to the contours of the all-electric Sports Activity Vehicle from BMW. When stimulated by electrical signals, the electrophoretic technology, based on a technology developed by E Ink that is most well-known from the displays used in eReaders, brings different colour pigments to the surface, causing the body skin to take on the desired colouration. “The BMW iX Flow is an advanced research and design project and a great example of the forward thinking that BMW is known for, ” says Adrian van Hooydonk, Head of BMW Group Design.

The surface coating of the BMW iX Flow featuring E Ink contains many millions of microcapsules, with a diameter equivalent to the thickness of a single human hair. Each of these microcapsules contains negatively charged white pigments and positively charged black pigments. Depending on the chosen setting, stimulation by means of an electrical field causes either the white or the black pigments to collect at the surface of the microcapsule, giving the car body the desired shade.

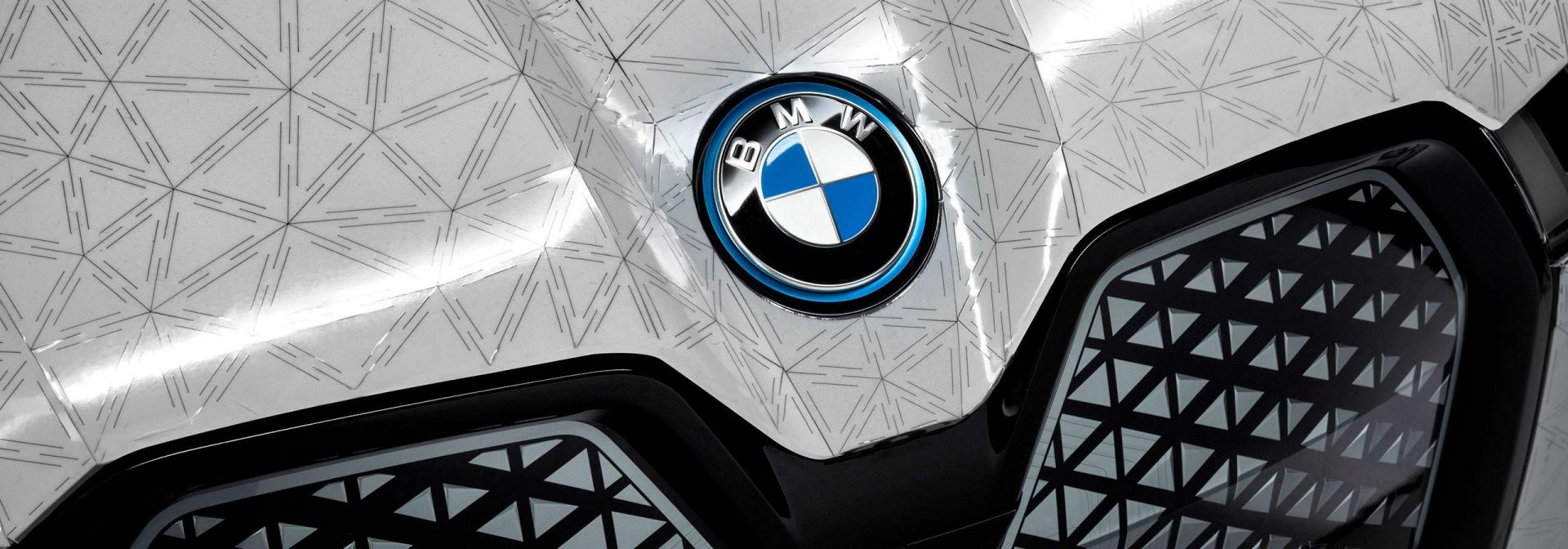

Achieving this effect on a vehicle body involves the application of many precisely fitted ePaper segments. Generative design processes are implemented to ensure the segments reflect the characteristic contours of the vehicle and the resulting variations in light and shadow. The generative design algorithms enable the necessary formability and flexibility required to tailor the ePaper exactly to the design lines of the vehicle.

Laser cutting technologies guarantee high precision in generating each segment. After the segments are applied and the power supply for stimulating the electrical field is connected, the entire body is warmed and sealed to guarantee optimum and uniform colour reproduction during every colour change.

How a variable exterior colour can increase efficiency.

A variable exterior colour can also contribute to wellness in the interior and to the efficiency of the vehicle. This is done by taking into account the different abilities of light and dark colours when it comes to reflecting sunlight and the associated absorption of thermal energy. A white surface reflects a lot more sunlight than a black one. By implication, heating of the vehicle and passenger compartment as a result of strong sunlight and high outside temperatures can be reduced by changing the exterior to a light colour. In cooler weather, a dark outer skin will help the vehicle to absorb noticeably more warmth from the sun.

In both cases, selective colour changes can help to cut the amount of cooling and heating required from the vehicle’s air conditioning. This reduces the amount of energy the vehicle electrical system needs and also its fuel the vehicle’s fuel or electricity consumption. In an all-electric car, changing the colour in line with the weather can therefore also help to increase the range. In the interior, the technology could, for example, prevent the dashboard from heating up too much.

E Ink technology itself is extremely energy efficient. Unlike displays or projectors, the electrophoretic technology needs absolutely no energy to keep the chosen colour state constant. Current only flows during the short colour changing phase.
